The Buddistick™ Portable Multi-Band Vertical Antenna
The Buddistick™ - A Lightweight, Portable Vertical Antenna
|
Designed as a
multi-band, portable antenna for 40m - 10m, the Buddistick™ is an
excellent performer with
any rig up to 250 watts. It works exceptionally well with the FT 817, Elecraft K2 and KX1, IC 703
and other QRP rigs.
The Buddistick comes packaged in a compartmentalized 1000 denier cordura portfolio bag and includes 2 aluminum arms (blue or black), one stainless steel telescopic whip, one adjustable coil, 2 coil clips, mounting kit, a complete counterpoise system, as well as operating manual.
Included is one 31' radial on a line winder for use on all bands 10 - 40m.
|
| The mounting kit for the Buddistick™is a mounting plate and SO-239 adapter for a coax feed. A "soft touch" rubberized clamping knob is used tosecure the plate to a clamp or tripod (1/4" x 20 threads). |
|
|
|
Buddistick™ Specifications |
Specification |
Description |
Length collapsed |
13 inches (33 cm) |
Length extended |
98 inches (249 cm) |
Weight |
1 lbs (.45 kg) |
Coil Diameter |
1.75 inches (4.5cm) |
Frequency Coverage |
7 to 54MHz continuous |
|

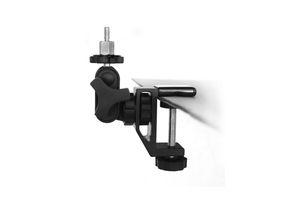

Accessories for the Buddistick™ include an adjustable clamp which allows for a full range of motion and permits the user to operate the Buddistick™ from a picnic table or a condo railing, for example.
You can also mount your Buddistick™ on a mini-tripod for use on the ground or on the deck or patio at your home.
Please see our Accessories page for tripods, clamps, and other accessories for the Buddistick™. |
|
|
|
